Description

OVERVIEW

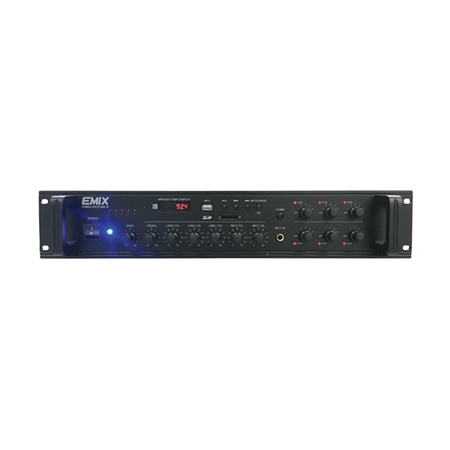

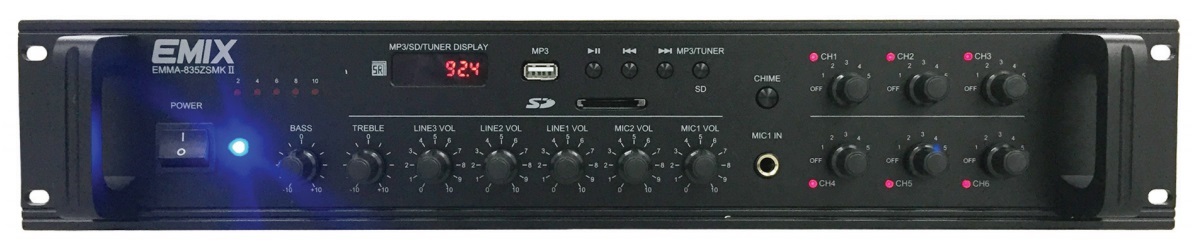

EMIX EMMA-8ZS Series mixing amplifiers have two ranges of power ratings: 250W and 350W. The mixing amplifier is integrated with a USB player for MP3 playback. It is design with both high (100V) and low (4-16 ohm) impedance speaker system. The LED output meter is to monitor the output signal level. It is standard 19 inch, rack mountable with ear piece provided and only takes up 2U of space.

FEATURES

• 250W and 350W, 100W Line & 4-16 ohm
• 4 Mic inputs, 3 AUX input, 1 Line output
• Phantom power for Mic 3 and 4
• USB / SD card player and FM Tuner
• Built in chime for announcement

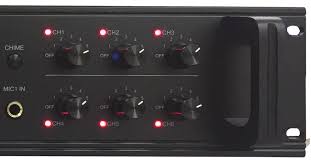

• 6 zones individual output volume control
• Bass and Treble control

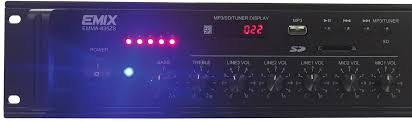

• LED as output level meter
• Short circuit, overload and high temperature protection

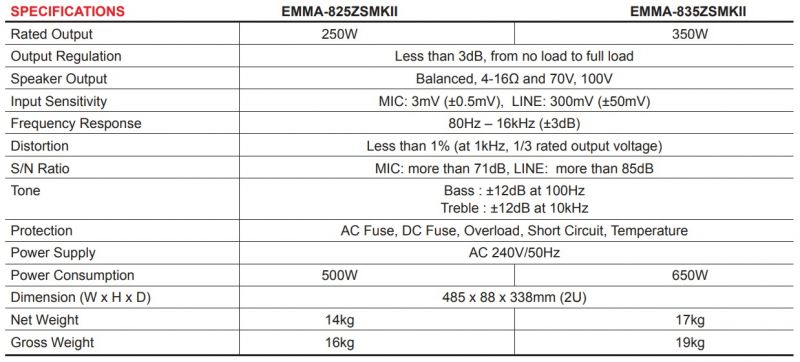

SPECIFICATIONS
