OVERVIEW

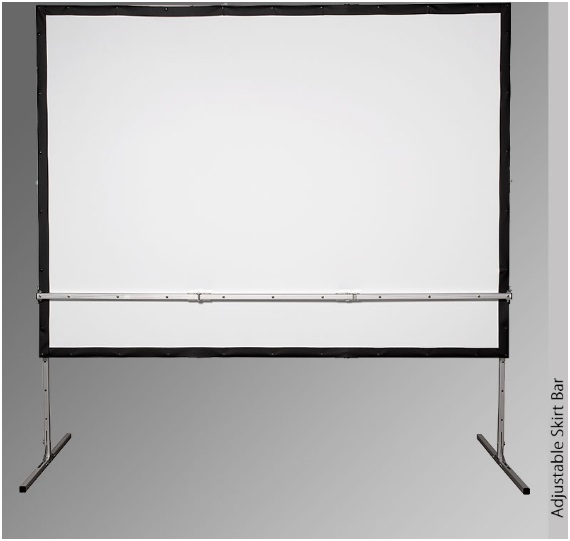

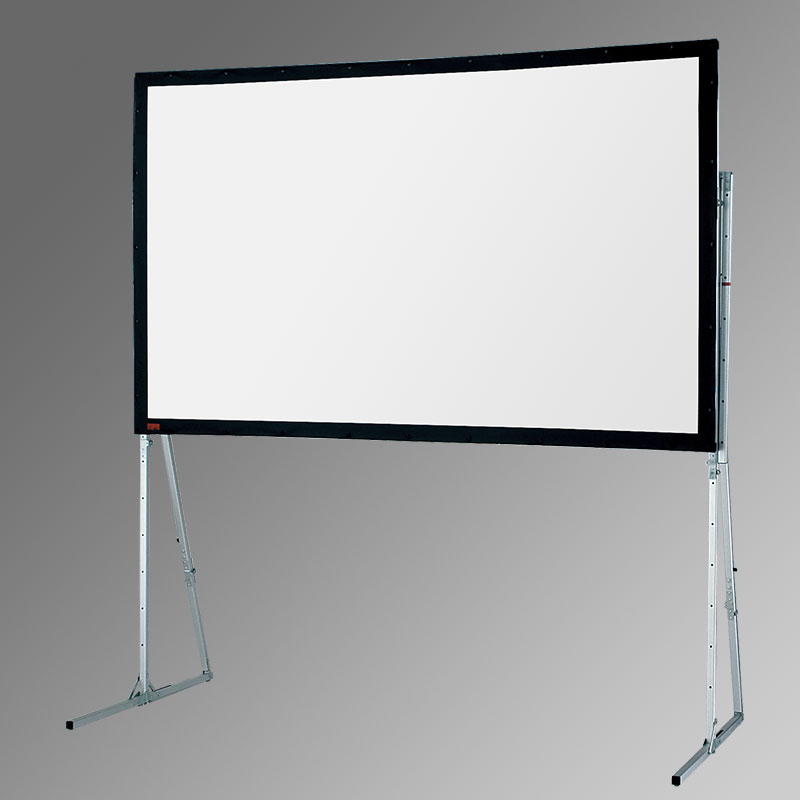

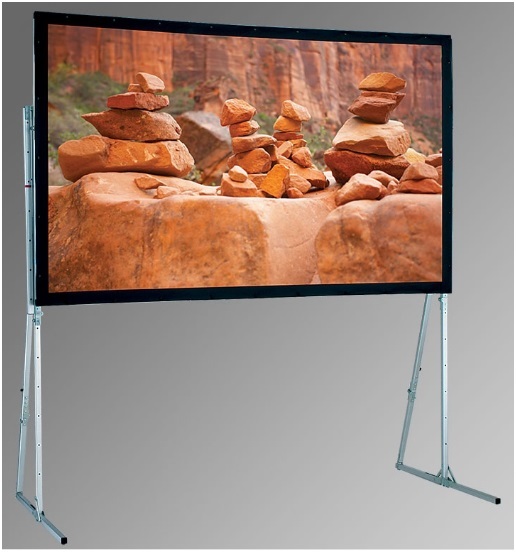

The new standard in portable folding screens, the Ultimate Folding Screen is the first screen manufactured with 100% CNC (Computer Numerical Controlled) components and assembly. The tubing is CNC machined, surfaces and borders are CNC cut; even rivet and snap holes are CNC placed.

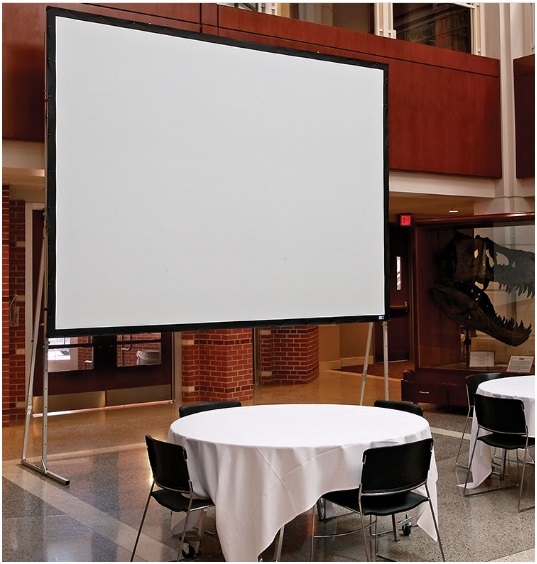

The portable Ultimate Folding Screen’s design simplicity and rugged components withstand the rigors of repeated set-ups and tear-downs in demanding applications. Screens remain taut and flat when attached. Includes heavy-duty, molded polyethylene wheeled carrying case. This projection screen features a lock-and-load latch that bites down when the viewing surface is attached providing an extremely rigid frame. The resilient latch retention spring is captured and constantly flexed to prevent the screen from dislodging. A flat viewing surface offers a better image quality that accommodates today’s varied viewing formats. Anodized aluminum tubing provides stability for larger projection screen sizes that are ideal for churches and expo halls.

Highlights:

  • Case dimensions 30 cm (H) x 40 cm (D) x 132 cm (L).
  • Maximum image width up to wide 488 cm wide, depending on surface selection.
  • Borders are electronically welded using PVC material that provides straighter, cleaner edges.
  • Clear anodized 32 mm x 2 mm wall aluminum tubing frame.
  • Standard legs support screen in a vertical position. Heavy-duty legs recommended for frame heights greater than 229 cm. Extra heavy-duty legs for frame heights greater than 320 cm.

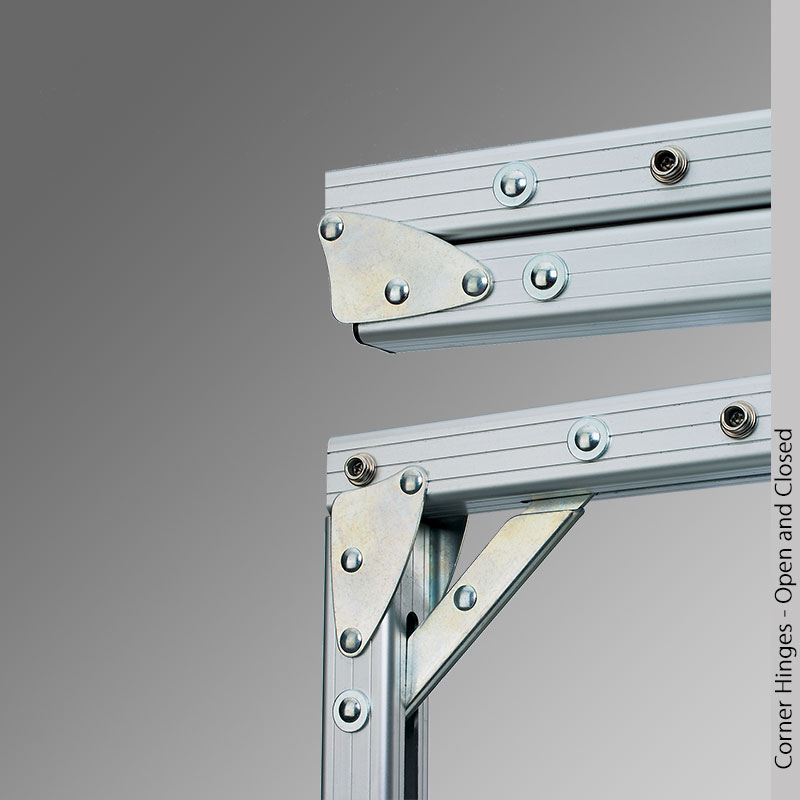

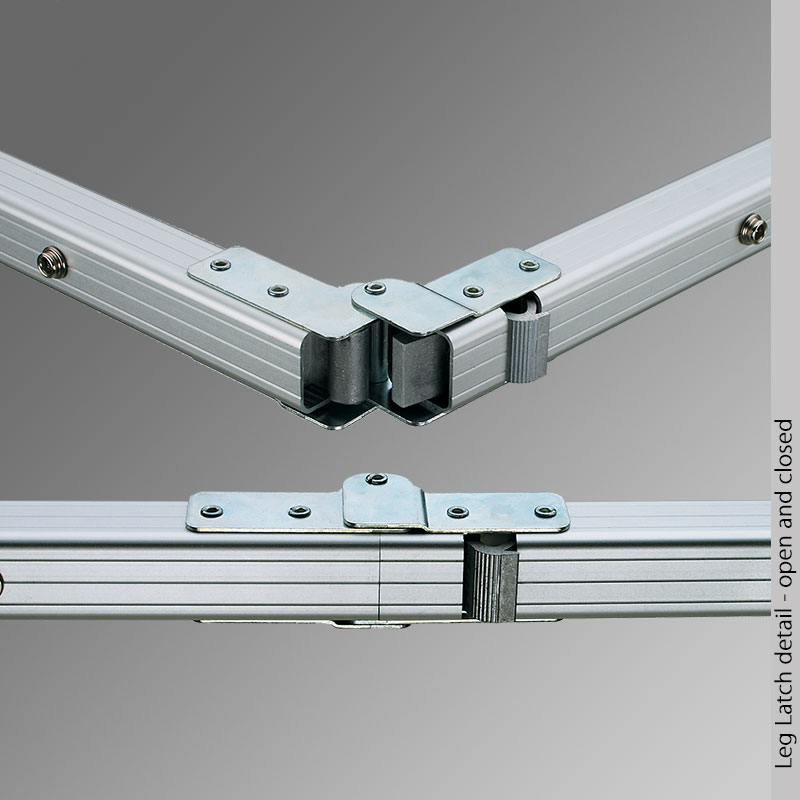

  • Legs adjust in 15 cm increments up or down with durable hinge locking mechanism.
  • Optional dress kit available with cotton (standard) or optional Inherently Flame Retardant (IFR) velour.
  • Includes heavy-duty, molded polyethylene wheeled carrying case.
  • Available with interchangeable front and rear projection surfaces.

DIMENSIONS

SIZES

  • Case dimensions 12″ high x 15 3/4″ deep x 52″ long (30 cm x 40 cm x 132 cm).
    – Maximum image width up to wide 192″ (488 cm) wide, depending on surface selection.
  • 16:10 FORMAT: from 95″ (241 cm) to 201″ (511 cm) diagonal.
  • 16:9 HDTV FORMAT: from 106″ (269 cm) to 220″ (559 cm) diagonal.
  • 4:3 NTSC FORMAT: 90″ (229 cm) to 200″ (508 cm) diagonal.
  • AV FORMAT: from 72″ x 72″(183 cm x 183 cm) to 144″ x 144″ (366 cm x 366 cm).
  • Custom sizes available.
