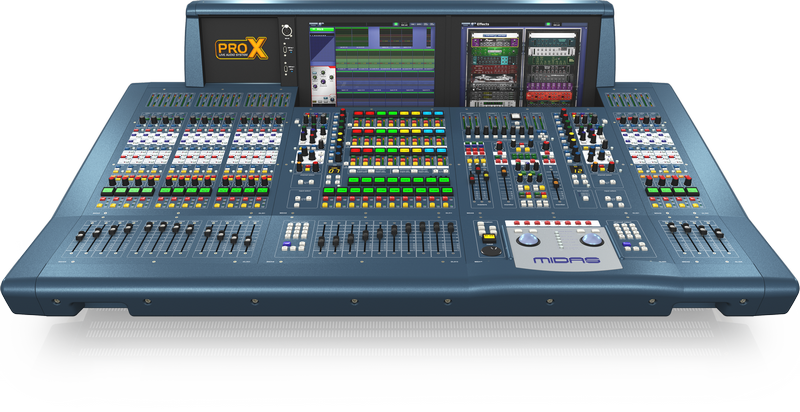

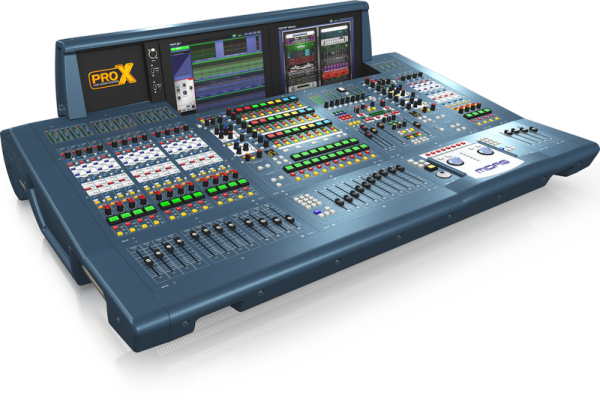

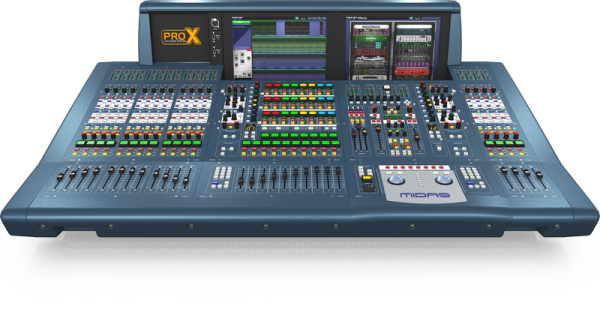

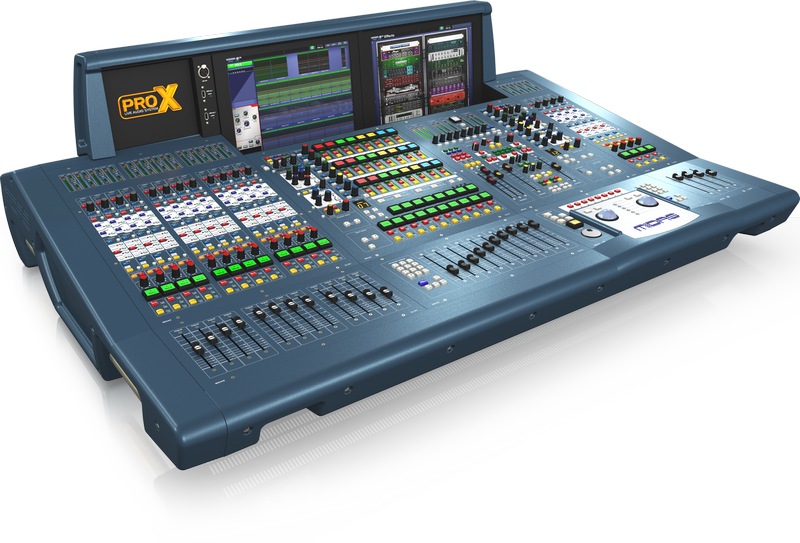

Description
Features:
- Live performance digital console control centre with up to 168 simultaneous inputs
- 99 time-aligned and phase-coherent mix buses
- HyperMAC and AES50 networking allows up to 288 inputs and 294 outputs @ 96 kHz Sample Rate
- HyperMAC router with 192 bidirectional channels over copper and optical fibre
- Provides dual redundant snake connection to the NEUTRON Audio System Engine
- Snake connections up to 500 m with optical fibre or 100 m with CAT5/5e cable
- 10 VCA (variable control association) and 8 POPulation groups
- Up to 36 assignable 1/3 octave Klark Teknik DN370 graphic equalisers
PRO X Advanced Navigation Flexibility
PRO X incorporates new and innovative methods of channel and mix bay navigation: FLIP Navigation, FX Navigation, GEQ Navigation, and MCA Navigation. These four options allow an engineer to easily and efficiently mix a large number of inputs on a compact control surface. PRO X also features the ability to display and control any output bus on the input control bay area. This navigation flexibility makes working with the console as simple as requirements dictate, or as deep and complex as a user desires. PRO X’s new centre section, which features 24 LCD switches that provide immediate access to up to 24 stereo pairs of output mix buses, also supports the new navigation modes.

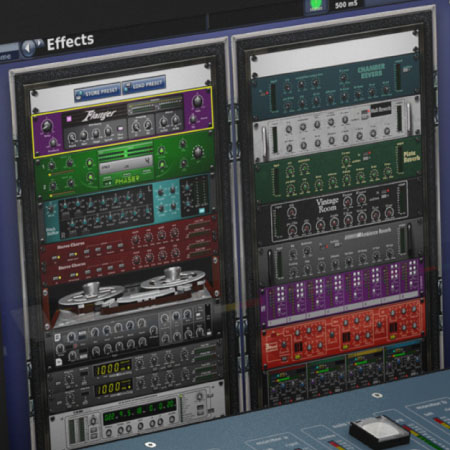

Integrated Effects Processors and Graphic Equalisers
The PRO X can simultaneously process up to 24 internal multi-channel effects and NEUTRON’s 40 bit floating-point audio processing hosts a wide choice of virtual effects devices, which range from dual-mono delay units, stereo modulation and numerous diverse reverberation simulations, multi-band compression, dynamic EQ and multi-channel dual-function dynamics processing. Up to 36 1⁄3 octave KLARK TEKNIK DN370 Graphic Equalisers (GEQs) are provided, which can be patched into any output.
PRO X provides comprehensive automatic latency management of all internal routing andprocessing latency – and also includes compensation for external analogue inserts. All audio samples are synchronised before summing, resulting in absolute phase coherence at the outputs,without the comb filtering effects of competing products that often result in specific frequencies being cancelled out completely.
All effects processors and GEQs are custom-designed to function within this automatic latency compensation system. This ensures a phase-coherent, sample-accurate mix regardless of whether the devices are used as channel inserts or on auxiliary buses.

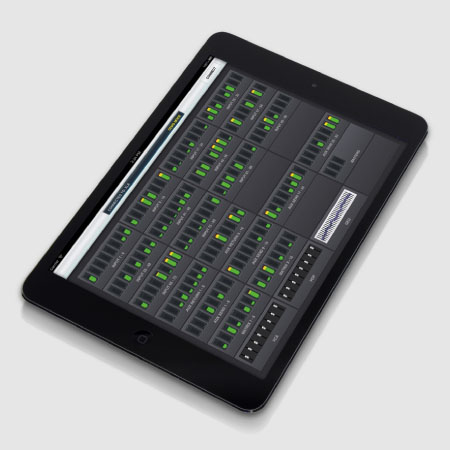

Wireless Remote Control
Delivering unprecedented control and mobility, the MIXTENDER App for iPad* combines control of key functions with the highly responsive system metering, allowing users to take control of PRO X using an iPad from anywhere in a venue. Support for multiple simultaneous iPads allows FOH and monitor engineers to work collaboratively, enhancing productivity and communication as well as saving valuable time during set-up. The MIXTENDER App for iPad is available as a free download from the Apple App Store.
