Description

OVERVIEW

The Extron SW VGA are two and four input VGA switchers with stereo audio. They provide video signal switching between multiple, high-resolution computer video or HDTV component video sources and a single display. The switchers provide 300 MHz (‑3 dB) RGB video bandwidth and are compatible with VGA‑QXGA and HDTV component video signals. SW VGA features auto-input switching, input signal sensing, and active computer audio buffering. Multiple control capabilities that include front panel, RS‑232, contact closure, and an optional Extron IR 102 handheld remote control allow for ease of integration into a variety of environments.

Auto-input switching automatically switches to the highest-numbered input with an active video signal, eliminating the need for manual switching. Input signal sensing detects which inputs have an active signal and sends this input confirmation through the RS‑232 port to the control system. SW VGA switchers offer active computer audio buffering, which converts unbalanced computer audio to balanced, line‑level signals to eliminate noise over long cable runs. They accept computer audio on 3.5 mm mini stereo jacks for fast, easy connection with pre‑terminated Extron VGA and audio cables. Balanced or unbalanced audio is available on captive screw connectors.

Both SW VGA models are housed in 1U, rack-mountable metal enclosures.

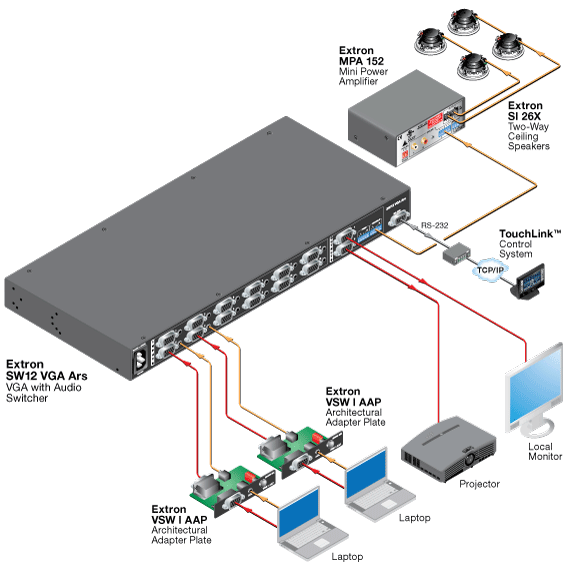

Diagram:

Features:

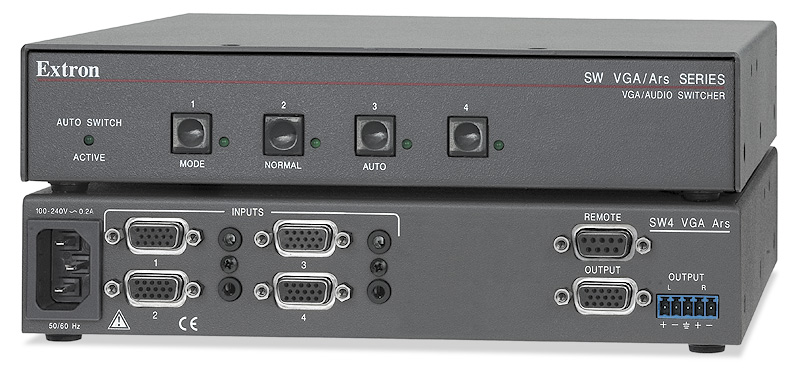

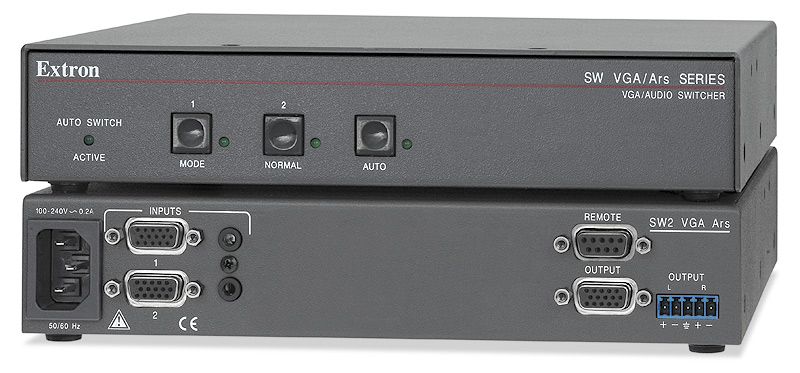

• Inputs: Two and four input models with 15‑pin HD connectors; 3.5 mm stereo mini jacks for audio
• Output: 15‑pin HD connector for video; captive screw connector for audio
• 350 MHz (-3 dB) RGB video bandwidth
• Compatible with VGA‑QXGA and HDTV component video signals
• ID bits from input 1 are routed to the primary output
• Switches balanced and unbalanced stereo audio
• Active computer audio buffering — Converts unbalanced computer audio to balanced, line level signals, eliminating noise over long cable runs.
• Compatible with Extron VSW I AAP — The optional VSW I AAP provides remote input connection and selection, which is useful in multiple-participant presentation environments.
• Auto-input switching — Automatically switches to the highest-numbered input with an active video signal.
• RS-232 control
• Contact closure remote control
• IR control — The SW VGA switchers can be conveniently controlled via IR remote control with the optional Extron IR 102 kit.
• Rack-mountable 1U, half rack width metal enclosure
• Internal Extron Everlast™ power supply — Provides worldwide power compatibility, with high‑demonstrated reliability and low power consumption for reduced operating cost
• Extron Everlast Power Supply is covered by a 7‑year parts and labor warranty.
