Description

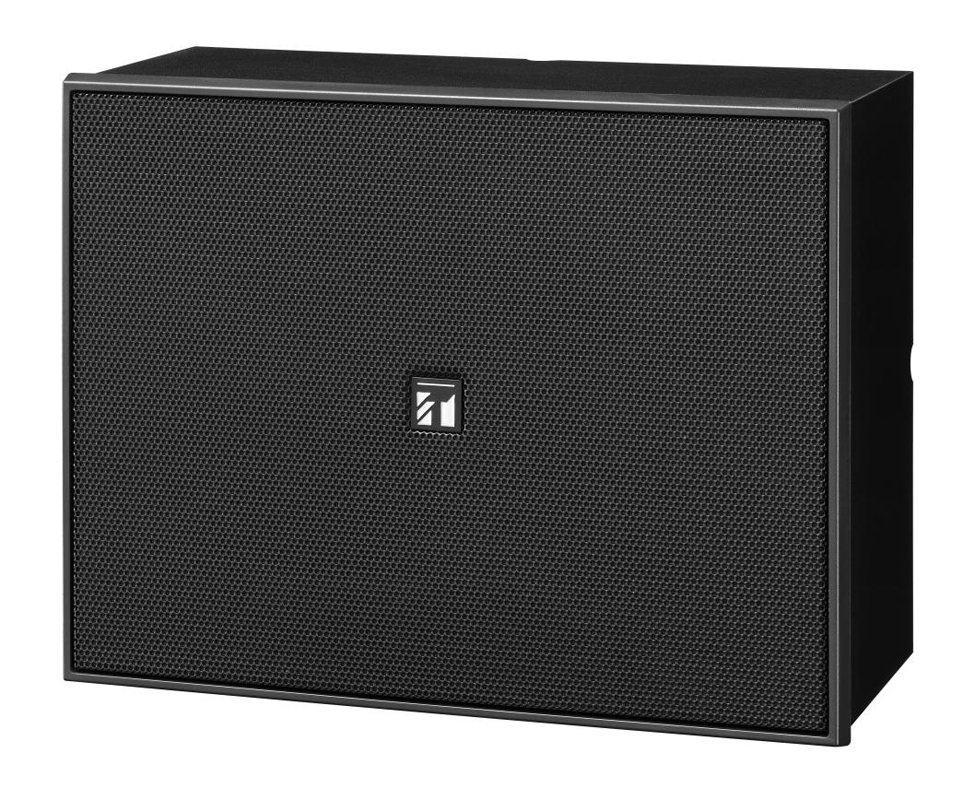

The BS-678BT, of which cabinet is made of wood, can be installed in a vertical or horizontal orientation. Either concealed in-wall wiring or exposed wiring can be used for speaker cable connection. The speaker structure that permits direct wall-mounting with screws prevents the speaker from falling easily even if an outward force is applied to.
The input impedance can be easily changed by changing the tap position of the transformer. Two built-in 6-inch double cone speaker units deliver high quality sound. The push-in type input connector makes cable connections easy and allows bridge wiring. BS-678BT have a built-in attenuator and can be connected to a 2-wire or 3-wire system.
SPECIFICATIONS
| Rated Input | 6 W (100 V line), 3 W (70 V line) |
|---|---|
| Rated Impedance | 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 6.7 kΩ (1.5 W), 13 kΩ (0.8 W) 70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 6.7 kΩ (0.8 W), 13 kΩ (0.4 W) |
| Sensitivity | 94 dB (1 W, 1 m) (500 Hz – 5 kHz, pink noise) |
| Frequency Response | 150 Hz – 20 kHz (peak -20 dB) |
| Speaker Component | 16 cm (6″) double cone-type |
| Applicable Cable | 600 V vinyl-insulated cable (IV wire or HIV wire) Solid wire: φ0.8 – φ1.6 mm (equivalent to AWG 20 – 14) 7-core twisted wire: 0.75 – 1.25 m㎡ (equivalent to AWG 18 – 16) |
| Connection | Push-in connector (bridging terminal) |
| Attenuation | OFF, 1 (-12 dB), 2 (-6 dB), 3 (0 dB) |
| Finish | Baffle: HIPS, black (RAL 9011 or equivalent color) Cabinet: Particle board with pvc sheet, black (RAL 9011 or equivalent color) Grille: Surface-treated steel plate net, black (RAL 9011 or equivalent color) |
| Dimensions | 250 (W) × 190 (H) × 110 (D) mm (9.84″ × 7.48″ × 4.33″) (excluding volume control knob) |
| Weight | 1.7 kg (3.75 lb) |
| Accessory | Speaker mounting screw (4 × 35 (0.16″ × 1.38″)) …2 |
