Description
OVERVIEW

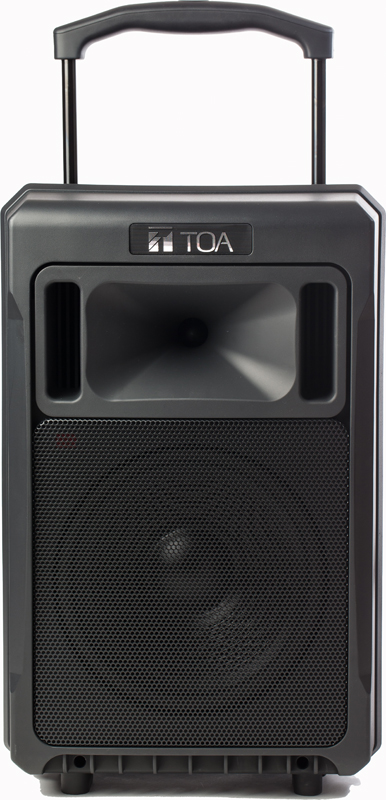

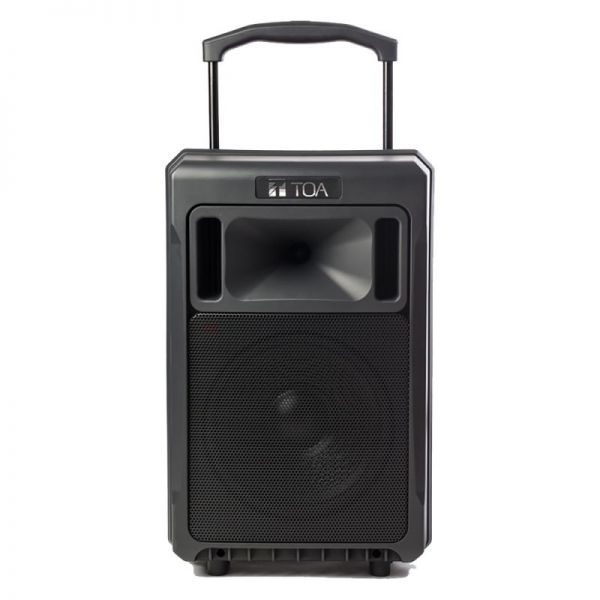

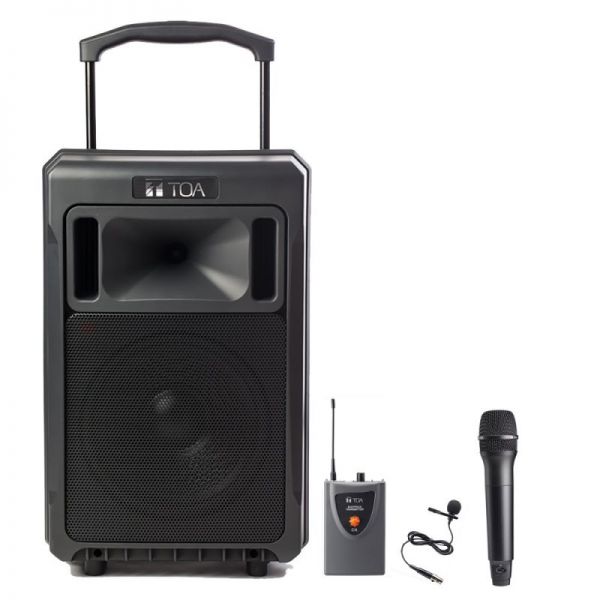

TOA WA-Z110SD Portable Amplifier offers reliable performance, clear, powerful sound and is simple to operate. This portable sound system is equipped with an audio music player that allows music to be played from CD, USB or SD/MMC card. For speech use, this unit has the option of installing up to 2 pieces of UHF wireless receivers to be used with the optional wireless handheld or lavalier microphone.

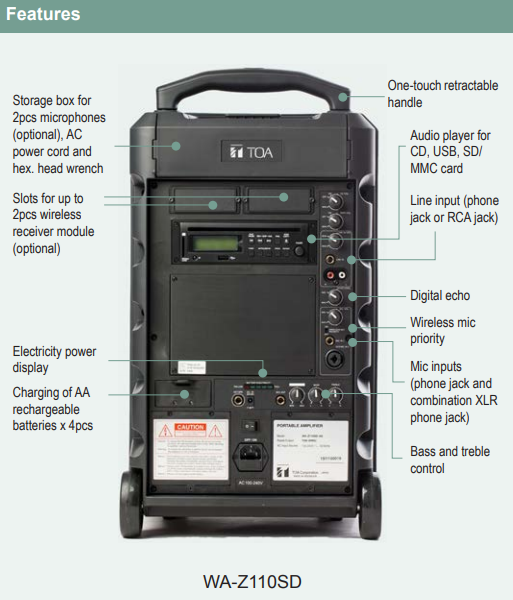

FEATURES
SPECIFICATIONS
| Speaker | 6Ω / 1″ tweeter, 4Ω / 10″ woofer |
|---|---|
| Receiver Module | UHF PLL non-diversity receiver module (up to 2 pcs of optional receivers) with 16 user selectable channels |
| Output Power | 70W (RMS) / 100W (MAX) (Class-D Amplifier) |
| Frequency Response | 70 Hz – 15 kHz (±3 dB) |
| Function | CD Player; USB (support up to 32GB); SD/MMC card (support up to 32GB); Mic input x 2 (phone jack x 1, combination XLR & phone jack x 1); Line input (RCA x 1 or phone jack x 1); Mixed out x 1 (Phone jack); External speaker out x 1 (phone jack), Digital echo system |
| Charging Time | 12V/5Ah (2pcs) Lead acid battery: 6-8hrs, 1.2V/1.3Ah Nickel-Metal Hybride battery (for microphone): 5hrs |
| Operating Time | Averagely 3-9hrs (depending on volume) |
| Power Supply | 100-240V (90-264V) switching power supply |
| Rechargeable Battery | 12V/5Ah Lead Acid Battery: 2 pcs 1.2V/1.3Ah Nickel-Metal Hybride Battery: 4 pcs (for Microphone) |
| Frame Material | Panel: Plastic with painting black Grille: Metal with painting black |
| Dimensions | 560 (H) × 330 (W) × 310 (D) mm |
| Weight | 16.5 kg (without Microphone) |
| Accessory | Remote control x 1, AV power cord x 1 (Type C), Hex head wrench x 1 |

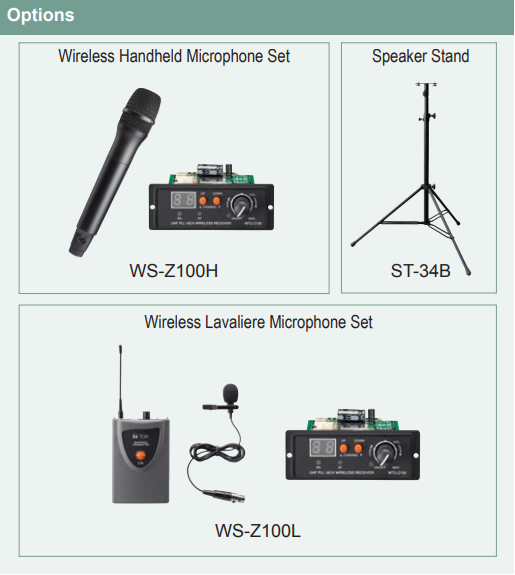

| Option | WS-Z100H AS set (WM-Z100H Handheld Mic & WTU-Z100 Wireless Receiver) WS-Z100L AS set (WM-Z100L Lavaliere Mic & WTU-Z100 Wireless Receiver) Speaker stand: ST-34B |
