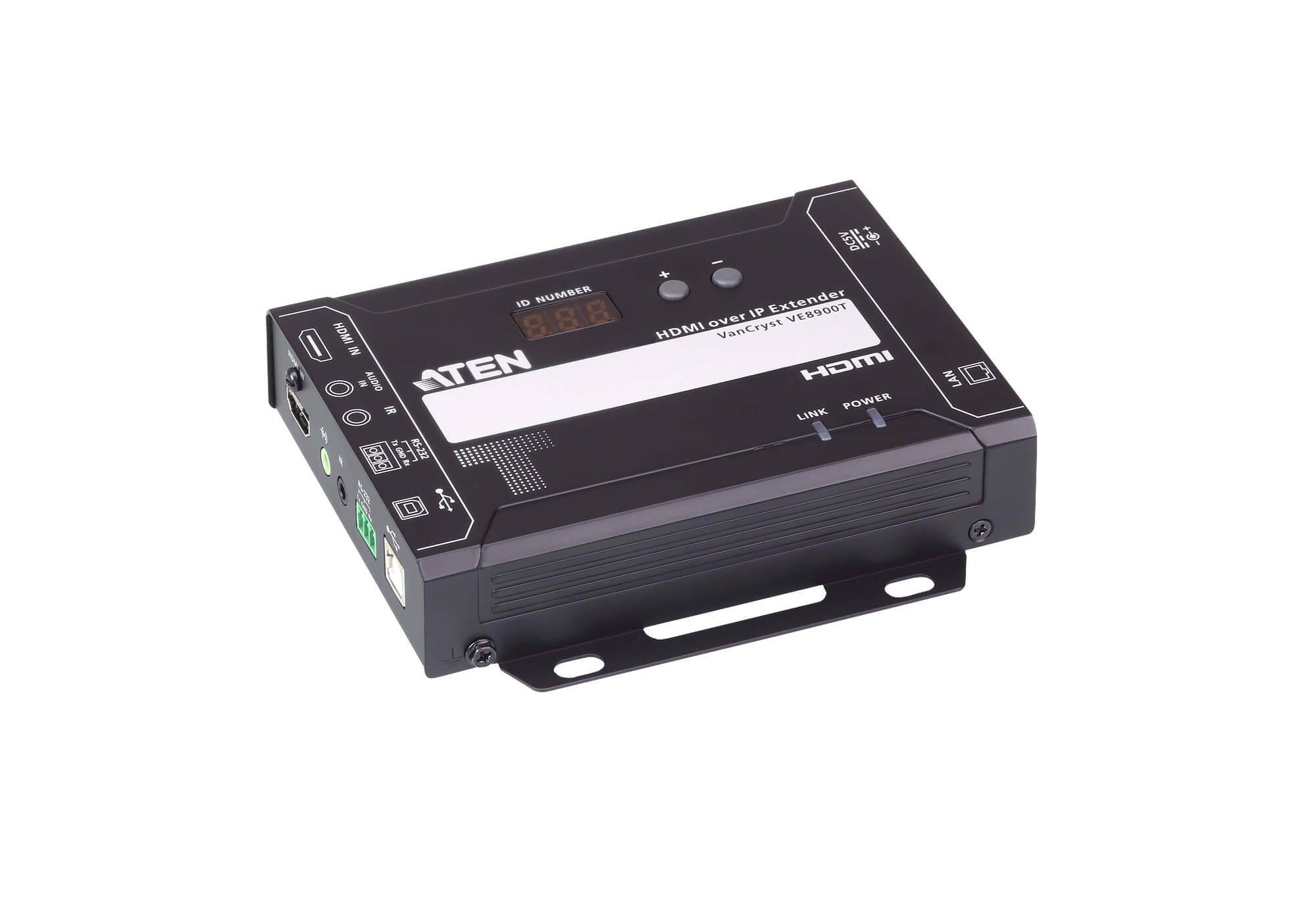

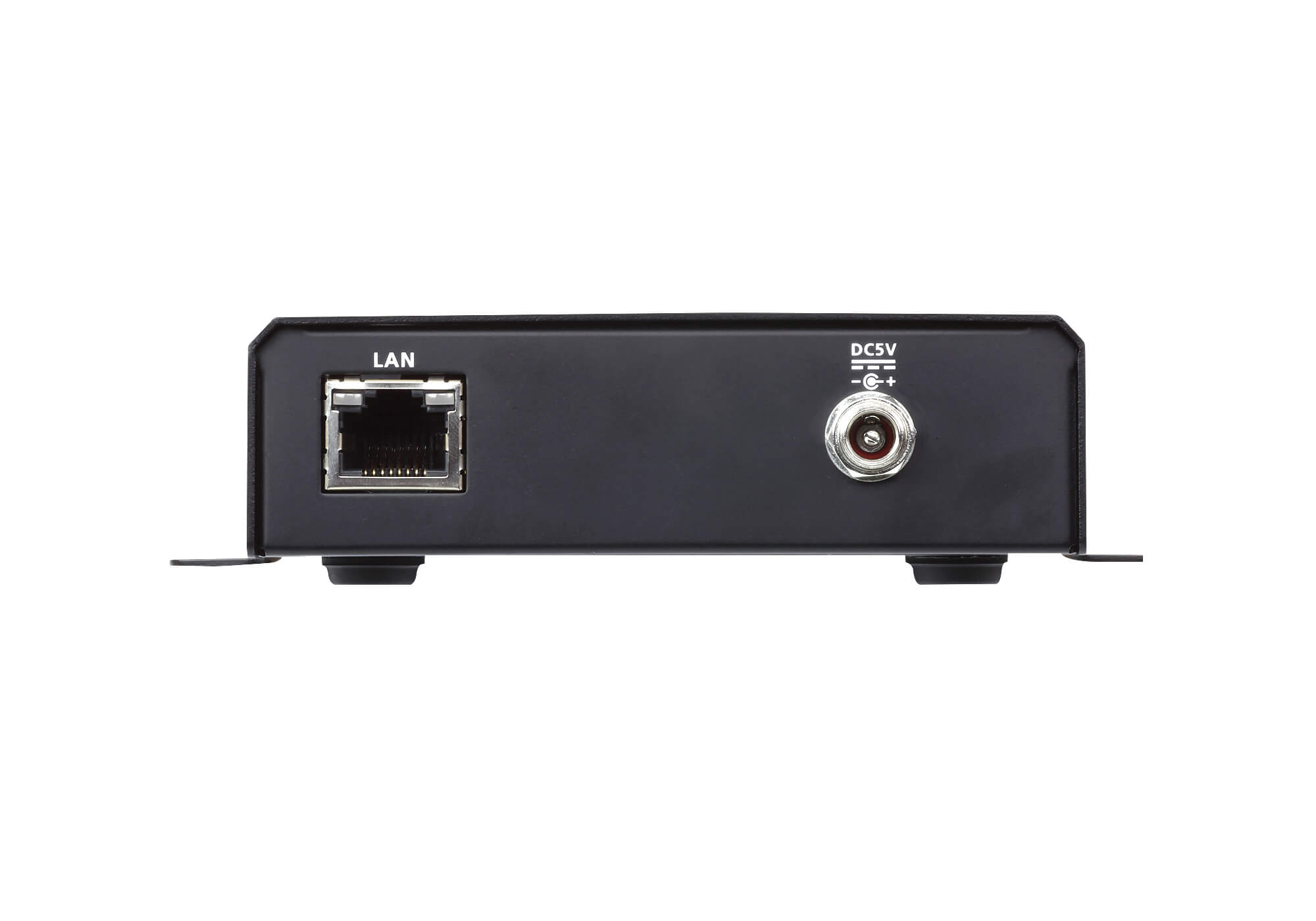

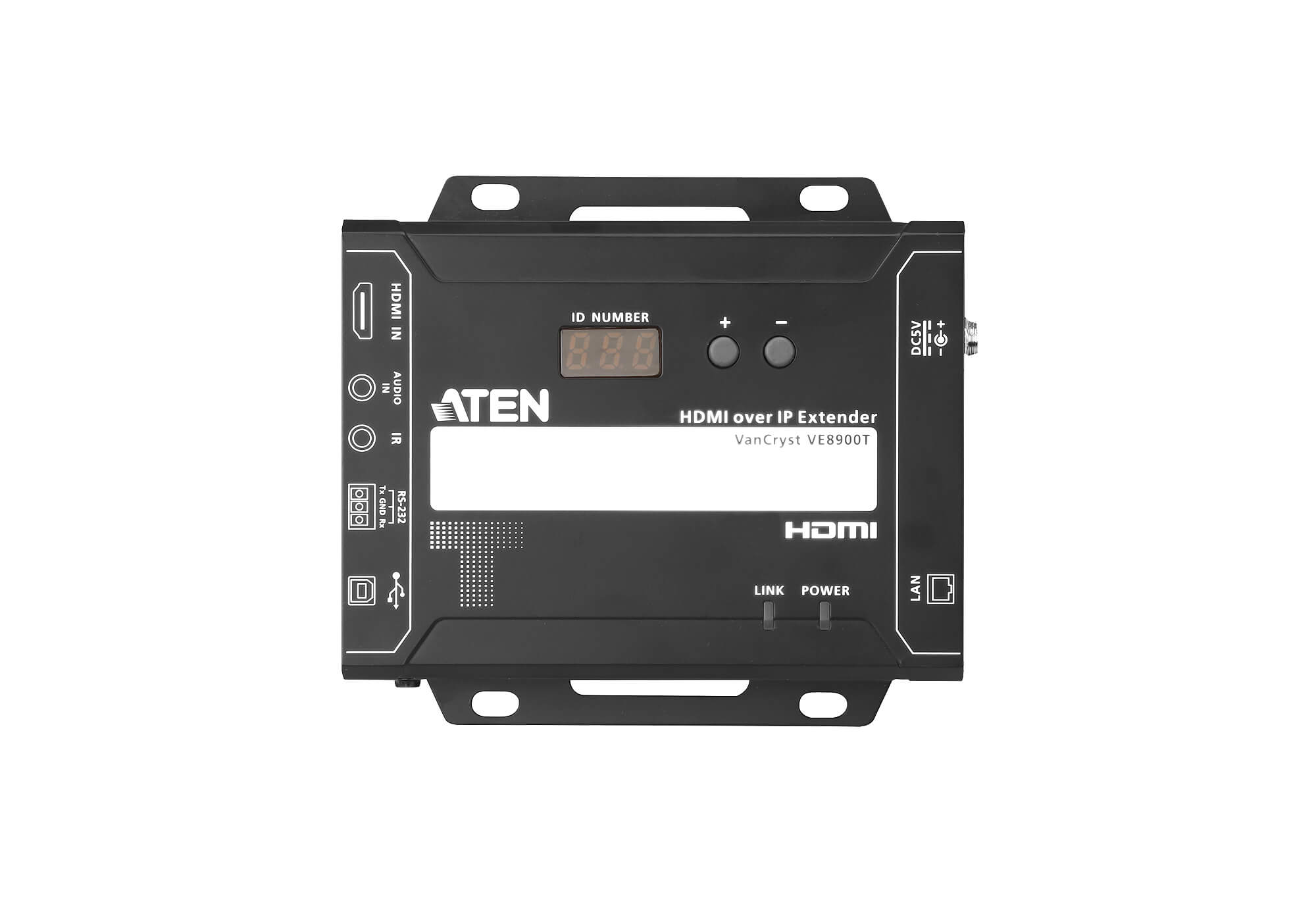

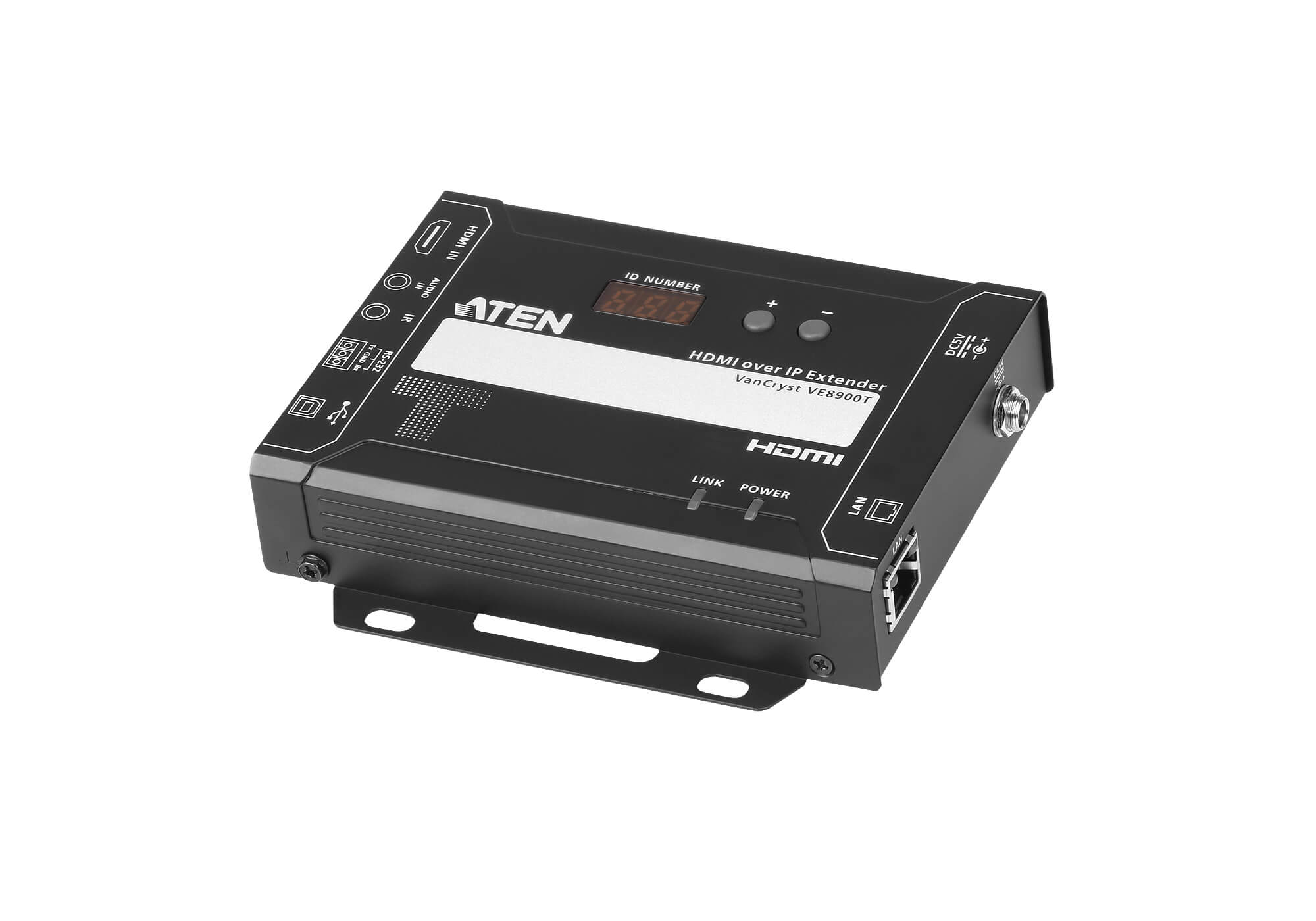

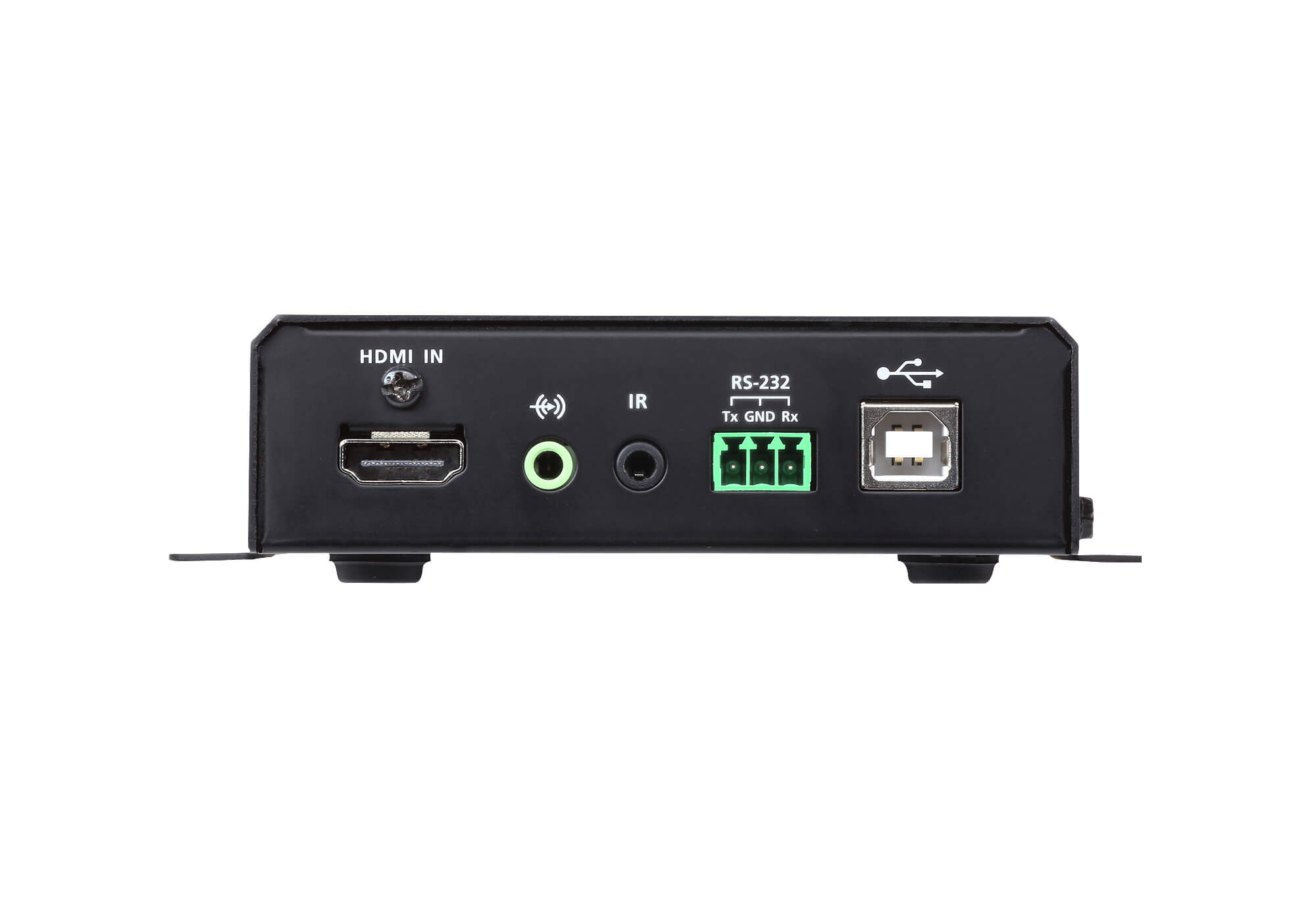

VE8900T

HDMI over IP Transmitter

  • Extends AV connections from a simple point-to-point to a multi-point to multi-point setup via LAN
  • Delivers HDMI visually lossless high-quality video up to 1080p @ 60 Hz
  • Effortlessly switches via top panel pushbuttons
  • USB Connectivity – USB port (USB 2.0) allows for connection of devices such as keyboard, mouse, flash drive, printer, and other USB peripherals*

Package Contents

  • 1x VE8900T HDMI over IP Transmitter
  • 1x RS-232 Terminal block
  • 1x 5V Power adapter
  • 1x User instructions
Add to quote
Categories: , Tags: ,

Description

The ATEN VE8900T Video over IP Transmitter delivers visually lossless 1080p AV signals with low latency over long distance via a local network of standard Gigabit network switch*

The VE8900T provides an effective, easy-to-use, and economical digital signage solution with the following features and advantages that directly address the challenges system integrators encounter when implementing AV over IP systems:

  • Limitless scalability and flexibility
  • No complicated IP setup
  • No additional server PCs or software required
  • Go further for less with daisy chaining

Engineered to meet today’s demands of large scale, multi-display, 1080p signal transmission, and designed to be easy to set up and operate, the VE8900T Video over IP Transmitter is an ideal product for a wide range of environments, such as trade shows, airports, university campuses, conference centers, and shopping centers.

*Note: Regarding the detail information requirement of network switch, please refer to Implementation guide: http://assets.aten.com/product/manual/Implementation_Guide.pdf

Features:

  • Lightweight Compression with Ultra-low Latency
    • Delivers visually lossless high-quality video up to 1080p @ 60 Hz
    • Ensures stunning quality video using ATEN advanced video lossless compression technology
    • EDID Expert™ selects the optimum EDID settings for smooth power-up, high-quality display and the best video resolution across different screens
    • Offers different levels of video compression rate including Smooth, Balance, and High Quality for users to choose depending on practical usage
  • Limitless Scalability and Flexibility
    • Extends AV connections from a simple point-to-point to a multi-point to multi-point setup via LAN without distance limitations
    • Offers multi-functionality in extender, splitter, matrix switch, video wall and daisy chain applications
  • Collaboration with ATEN Control System
    • Integrated solution – Compatible with ATEN Control System, allowing users to directly operate VE8900T via CLI Telnet or RS-232 protocol
    • Effortless operation – One click to effectively operate VE Manager, TV, projector, source player, and related equipments via touch panel and keypad

  • Spontaneous Scheduling Management
    • Offers an user-friendly scheduling management function for users to pre-plan the display schedule
    • Provides robust and intuitive scheduling management options to help users to manage all events in the calendar to as detailed as to setting events to minute intervals
    • Integrates all VE89 units to arrange the profile by grouping individual receiver or video wall
    • Multiple profiles can be arranged to play in any order over a selected period of time
  • No Complicated IP Setup
    • Simple configuration that requires no extensive IT experience or extra learning

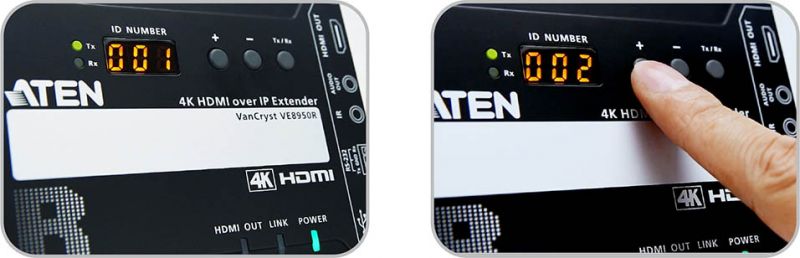

    • Effortlessly switches among input sources via top panel push buttons

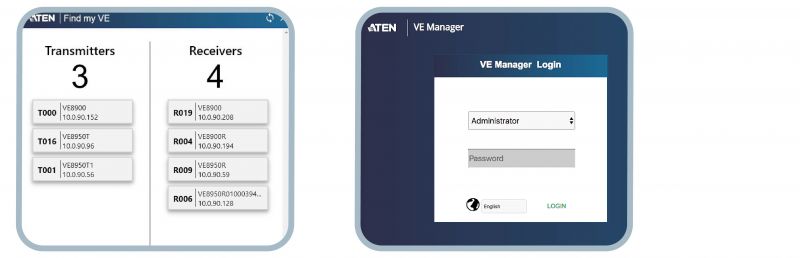

  • Web GUI-Based Management, No Additional Server PCs or Software Required
    • Simple Access – Without typing IP address on Chrome browser, users are allowed to directly link to VE Manager via one click on “Find My VE” Chrome based free tool

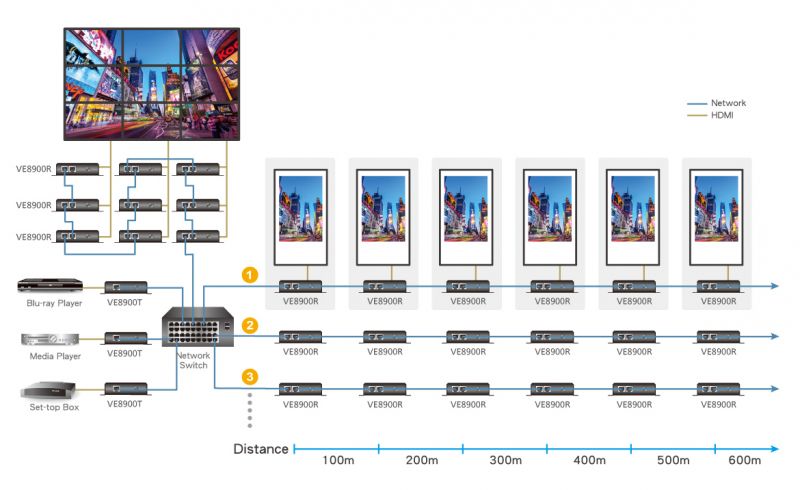

  • Go Further For Less with Daisy Chaining*
    • Connects multiple displays through a single port to utilize every port of the network switch and maximize their value
    • Easily expandable – cabling and system deployment is easy with no huge network switches and fewer cables needed
    • Perfect for large-scale deployment covering hundreds of meters, such as hotel facilities, airports, university campuses, stations, shopping malls, and exhibition centers
      * Depending on your network architecture, we recommend daisy chaining up to 30 units. Please contact ATEN representatives for more details.

  • Video Wall Support
    • Supports up to 8 x 8 video wall (64 displays)*
    • Supports horizontal or vertical (90° and 270° rotation) display orientation
    • Easily switches layout profiles, preview and drag-and-drop video sources via the intuitive web GUI
      *Depends on your network architecture, please contact ATEN representatives for more details.
  • Embedded / De-embedded Audio Support
    • Separate audio signal can be embedded into the HDMI stream
  • Multiple Control Channels
    • Multiple control methods – the system can be managed via Ethernet or top-panel pushbuttons
    • USB Connectivity – USB port (USB 2.0) allows for connection of devices such as keyboard, mouse, flash drive, printer, and other USB peripherals*
    • Bi-directional IR Channel – IR transmission is processed one way at a time
    • RS-232 Channel – bi-directional RS-232 serial port allows for connection of peripherals such as touch screens and bar code scanners
      Note: Each VE8900T transmitter can be controlled by a total of 4 USB touch screens installed to VE8900T receivers.

Diagram:
