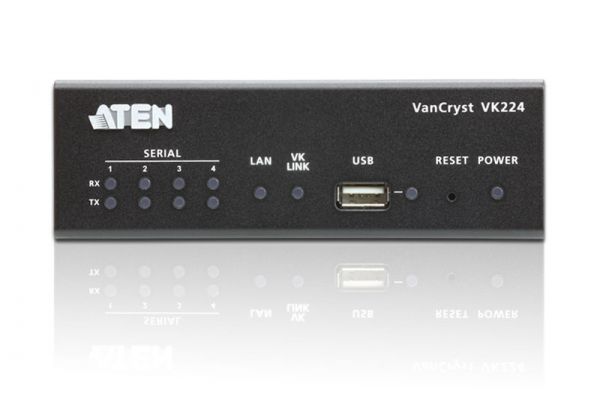

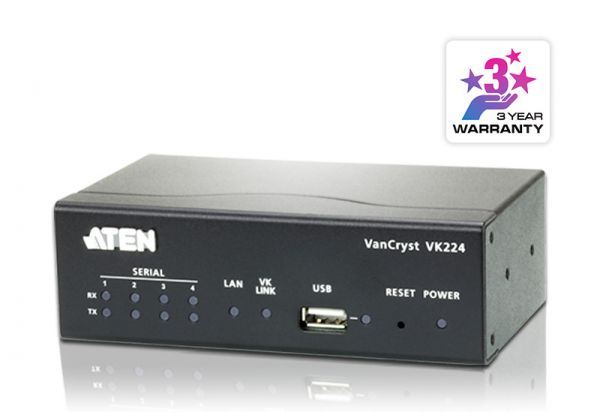

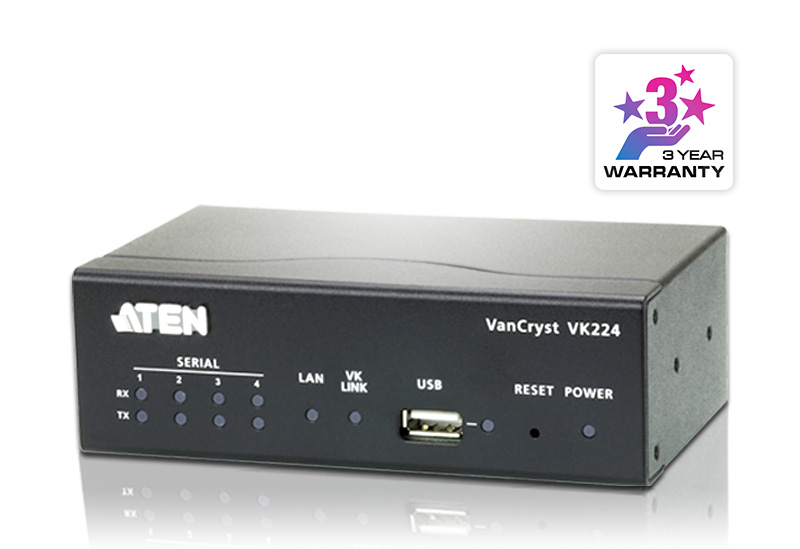

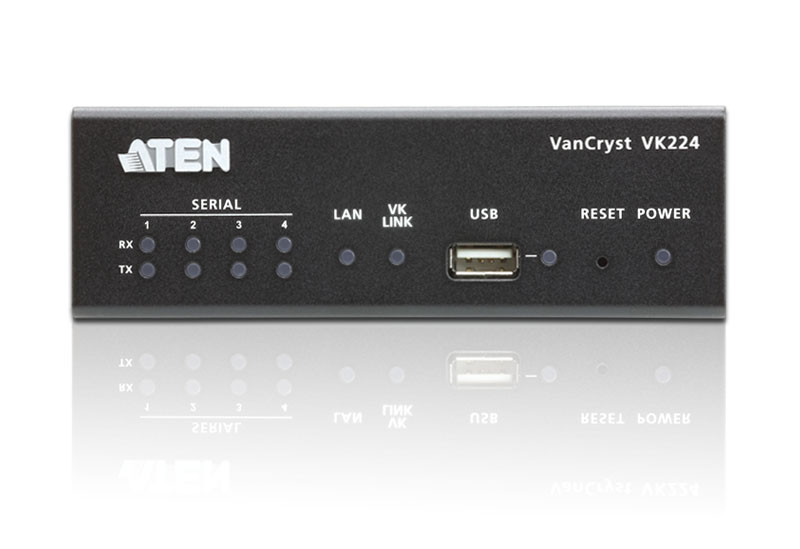

VK224

4-Port Serial Expansion Box

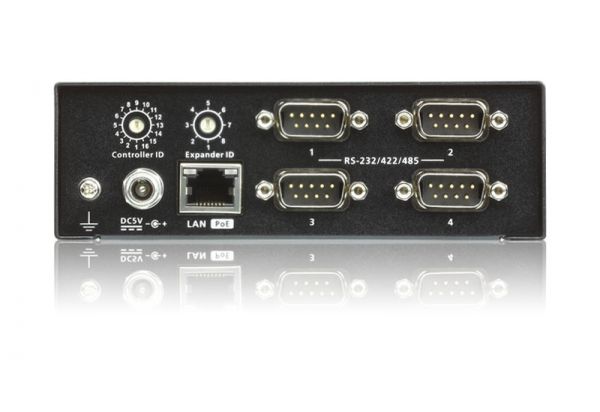

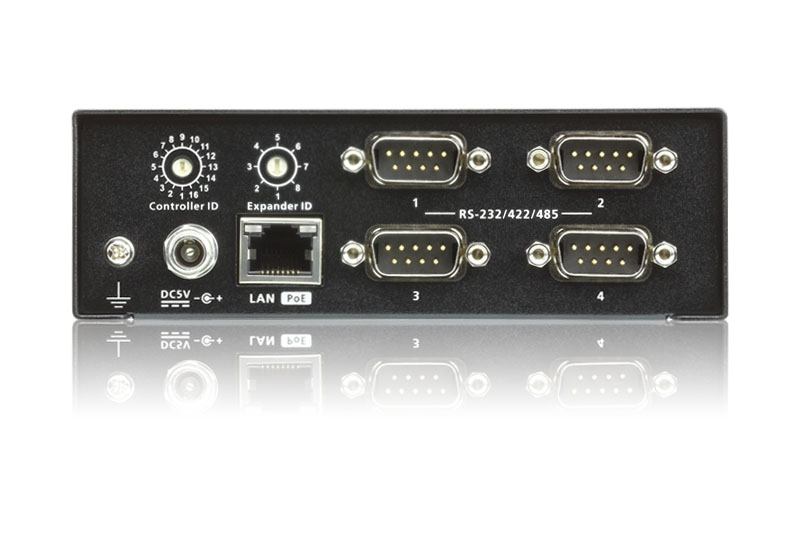

  • Provides 4 bi-directional RS-232/422/485 serial ports to expand the ATEN Control System
  • ID Switch pairs the VK224 with a controller to instantly configure the network settings
  • Up to eight VK224 expansion boxes can be added to a single Control Box
  • Supports Power over Ethernet (PoE) or DC power supply

Package Contents

  • 1x VK224 4-Port Serial Expansion Box
  • 1x Mounting Kit
  • 1x User Instructions



Add to quote
Categories: , Tags: ,

Description

The VK224 4-Port Serial Expansion Box provides four additional bi-directional RS-232 / 422 / 485 serial ports for a flexible expansion of the ATEN Control System. This allows users to control additional serial devices in an environment where more serial devices are required. With the advantage of an Ethernet-based connection, the expansion box can be easily connected to the VK2100 Control Box via a LAN connection from a variety of locations across a network.

Features:

  • Provides 4 bi-directional RS-232/422/485 serial ports to expand the ATEN Control System
  • Up to eight VK224 expansion boxes can be added to a single Control Box
  • Flexible Deployment: Connects to a Control Box via an Ethernet connection
  • ID Switch pairs the VK224 with a controller to instantly configure the network settings
  • Supports Power over Ethernet (PoE) or DC power supply
  • Firmware upgradable through USB or Web interface

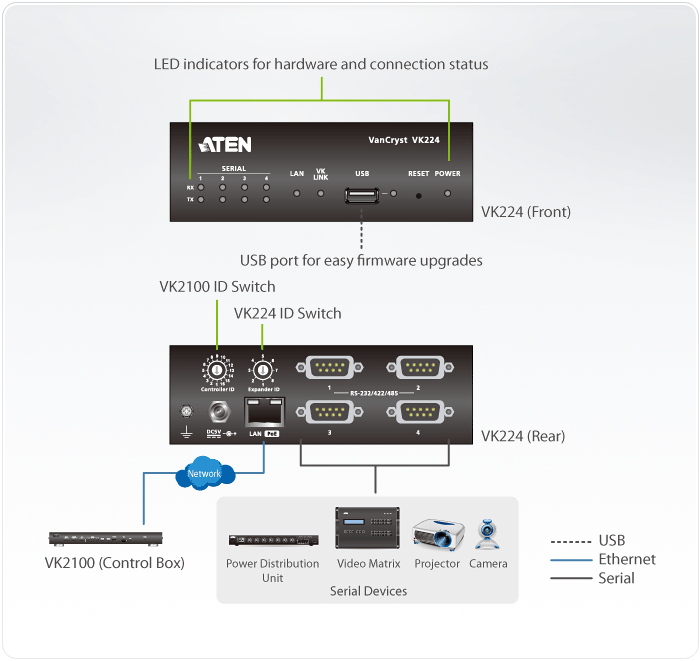

Diagram:
