Description

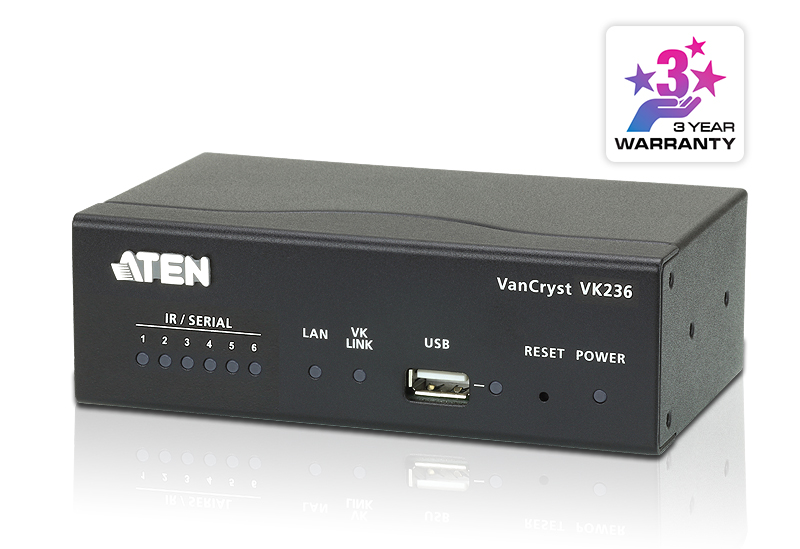

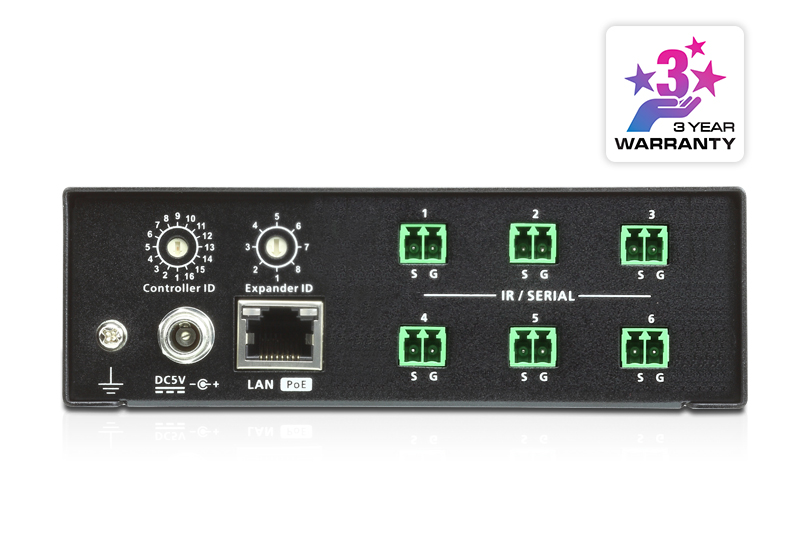

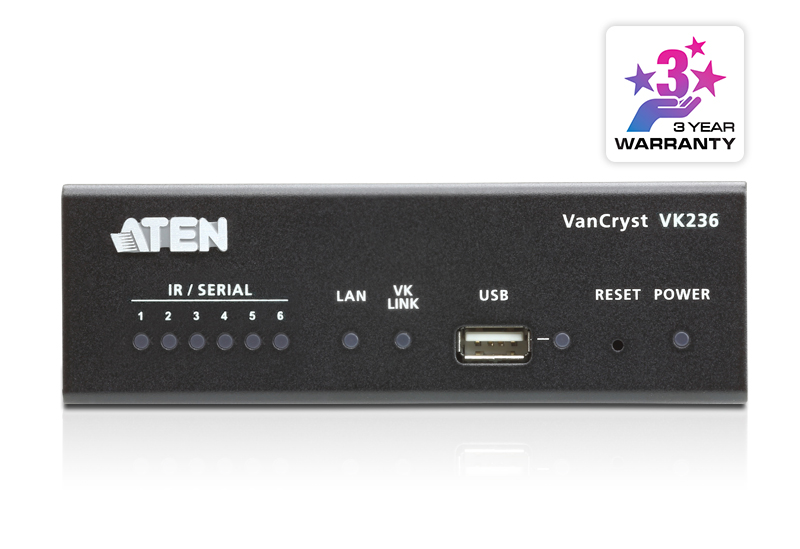

The VK236 6-Port IR/Serial Expansion Box provides six additional IR/Serial ports for a flexible expansion of the ATEN Control System.
This allows users to control additional IR/serial devices in an environment where more devices are required. With the advantage of an Ethernet-based connection, the expansion box can be easily connected to the VK2100 Control Box via a LAN connection from a variety of locations across a network.
Features:
- Provides 6 IR/Serial ports to expand the ATEN Control System
- Up to eight VK236 expansion boxes can be added to a single Control Box
- Flexible Deployment: Connects to a Control Box via an Ethernet connection
- ID Switch pairs the VK236 with a controller to instantly configure the network settings
- Supports Power over Ethernet (PoE) or DC power supply
- Firmware upgradable through USB or Web interface

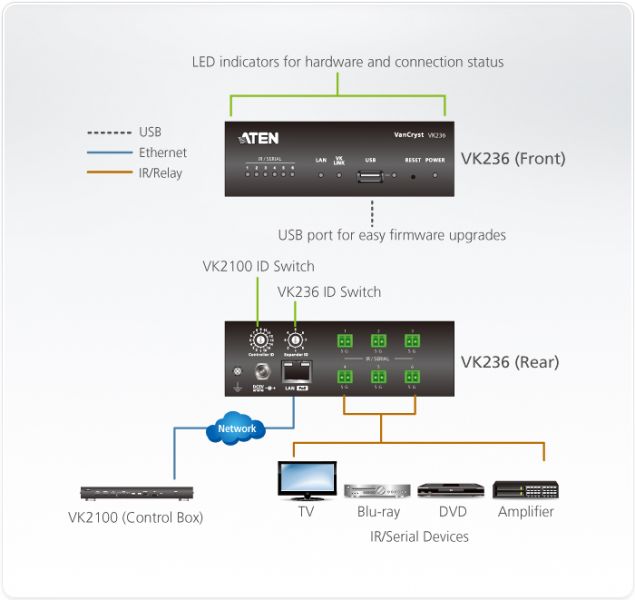

Diagram:
