Description

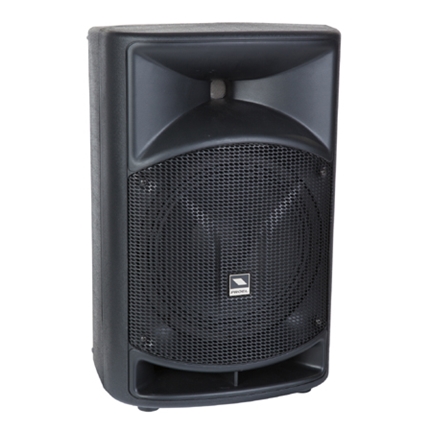

WAVE10A is a range of active speakers featuring multiple inputs and a versatile MP3 player with BLUETOOTH connectivity. Hosted in lightweight yet ultra-durable polypropylene cabinets, WAVE systems combine selected HF and LF transducers with state of the art electronics, including a sophisticated pre-amp section with active filtering and dual CLIP LIMITERS and efficient Class D power amplifiers for the LF section.
The MEDIA PLAYER you can find on-board is able to play MP3 files not only from an SD card or a USB MEMORY STICK, but also thru a BLUETOOTH connection. You only need to pair your smartphone or your tablet with a WAVE speaker for playing music without the need of any cable. Furthermore, with built-in 2-channel mixer you can connect a microphone or an additional external source to your PA and mix your sound with independent level controls and a 2-band EQ.
The extremely versatile cabinets can be mounted on standard speaker poles, laid on the side for the use as stage monitors and even suspended using the built-in flying points.
TECHNICAL SPECIFICATIONS
| System type | 2-way vented enclosure |
| High Frequency Device | 1” compression driver with 1” VC |
| Low Frequency Device | 10” woofer with 1.5” voice coil |
| Angular Coverage | 90° H x 60° V |
| Total peak power | 260 W |
| HF Amplifier Continuous Power | 30 W Class AB |
| LF Amplifier Continuous Power | 100 W Class D |
| Frequency Response | 70 Hz – 20 kHz |
| Max SPL | 122 |
| Connectors | MIC/LINE IN: XLR-F + 1/4” JACK, LINE IN: XLR-F + 2xRCA LINE OUT: XLR-M |
| Controls | MIC/LINE/LINE/MASTER LEVEL, LINE/MIC selector, LOW EQ, HIGH EQ, MEDIA PLAYER LEVEL + NAVIGATION |
| Power Supply | 230 VAC or 120 VAC 50/60 Hz with LINE VOLTAGE selector |
| Weight | 14 kg (30.8lb) |
| Flying System | 2 x M8 – bottom |
| Construction | Polypropylene |
| Mounting Pole | 1 x bottom |
| Dimensions (W x H x D) | 320 x 500 x 290 mm |
