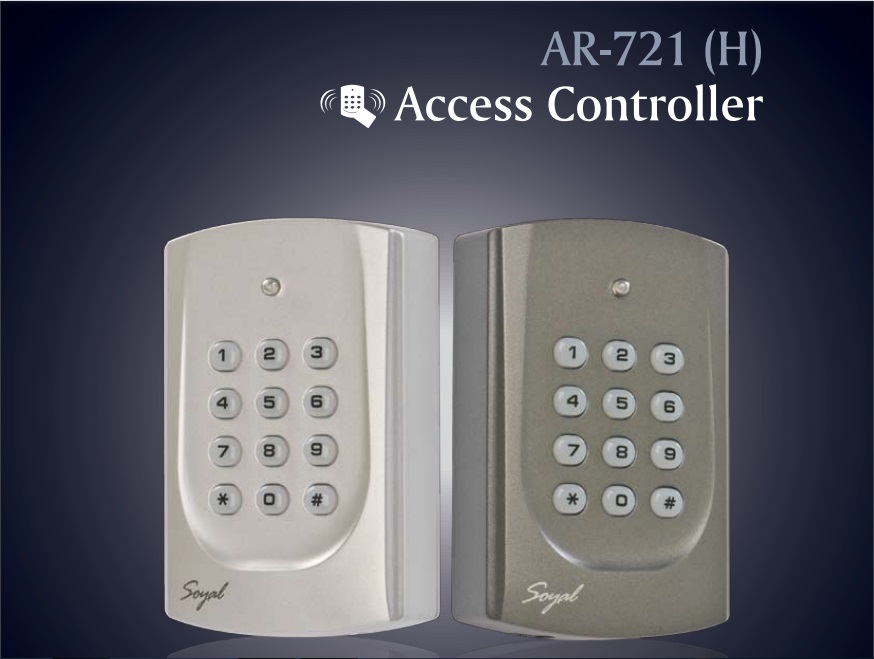

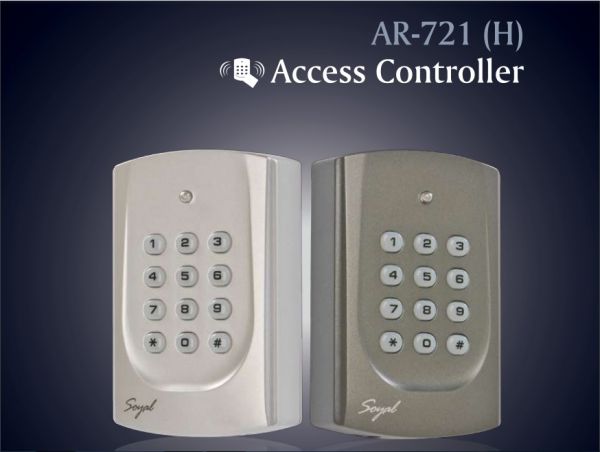

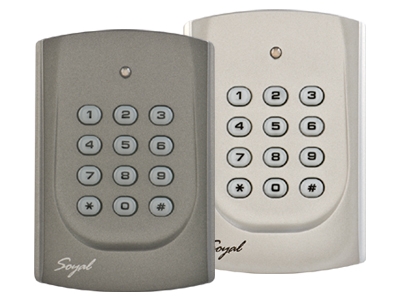

SOYAL AR721H

Door Access System

Product Model: AR721 H

Features:

  • 1 bi-color LED and 1 beeper for identification.
  • Built-in Watchdog to prevent system from hanging.
  • TTL serial output for various application and lift control.
  • Auto lock of the keypad for 30 second after continuous failed operation by 3 times.
Add to quote
Categories: , Tags: ,

Description

12 numeric soft-feel keypad with bicolor LED and buzzer indicator. LED change color (green and red) with buzzer’s beep sound to indicate reader status. This a low budget and best value reader to meet wide range of application requirement.

Built in 2-in-1 combo function:

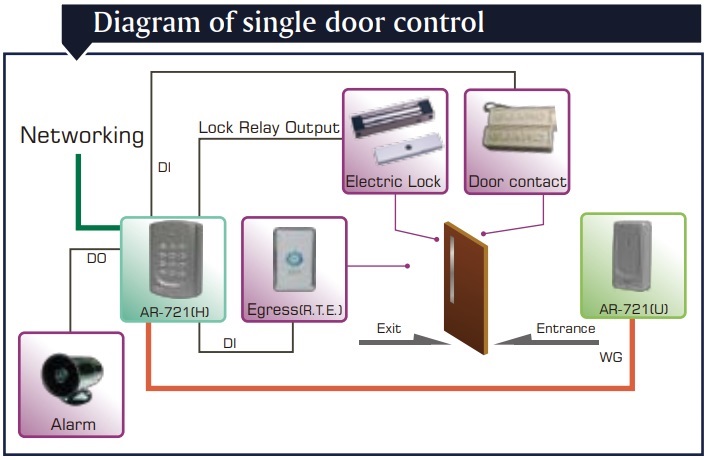

  • Standalone mode: Single door reader with directPC
  • Networking mode: Reader only – passing all data back to AR716 interface for further operation.
  • Reader auto-detect standalone / networking mode.

General feature:

  • DirectPC technology allow direct interface to PC
  • Support standard 125Khz EM or mifare 13.56MHz card
  • Alarm function (tamper / door open too long / force unauthorized entry)
  • Compact smaller design to effectively blend with any decoration

Application:

  • Door access control
  • Car park access control
  • Elevator access control

Standard Feature:

  • Support door auto-relock.
  • Keypad will be locked for 30 sec if continuous error.
  • Built in watch dog to prevent system from halting.
  • Made of high quality ABS material.
  • Assignable user range for multiple master card. Master card is used to as a alternative method to enter editing mode in case user forgot the password.
  • Multi mode (M4, M6 and M8) operation.
